Fabric Sidewall Conveyor Belt

Usage：

In order to prevent the conveying materials scattering due to site restrictions or the requirement for lifting materials with large dip angel, the sidewall conveyor belt must be able to withstand the extremely high stress and repeated flexing that occurs in high capacity, steep angle conveying. It is specially designed by engineers by using the polyester fabrics with the highest quality and extremely low elongation to provide higher rigidity value. This product is suitable for conveying materials under the condition of large dip angle (0°-90°).

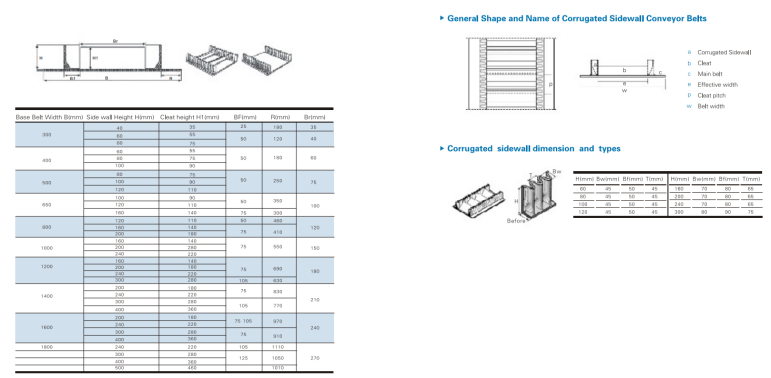

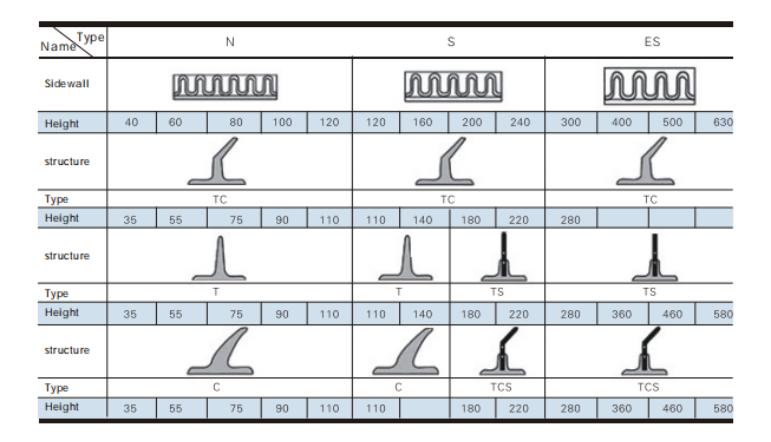

Structure and technical specification：

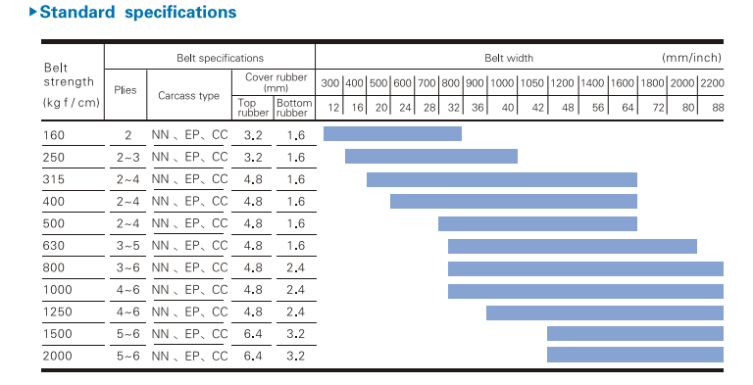

Standard Specifications：
